Applicable material
Spray dried granule:
1
Chemical industry:
Catalysts, resins, synthetic laundry powder, oils and fats, ammonium sulfate, dyes, dye intermediates, silica, graphite, ammonium phosphate, etc.
2
Food industry:
Amino acids and analogs, seasonings, proteins, starches, dairy products, coffee extracts, fish meal, meat extract, etc.
3
Pharmaceutical industry:
Proprietary Chinese medicines, pesticides, antibiotics, pharmaceutical granules, etc.
4
Ceramics industry:
Magnesium oxide, porcelain clay, various metal oxides, dolomite, etc.
5
Spray granulation:
Applicable to various fertilizers, alumina, ceramic powder, pharmaceuticals, heavy metal super-hard steel, chemical fertilizers, granular laundry powder, proprietary Chinese medicines, etc.
6
Spray cooling granulation:
Amino fatty acids, paraffin wax, glycerides, beef tallow, etc. It is also widely used in spray crystallization, spray concentration, spray reaction and other processes.
Product introduction

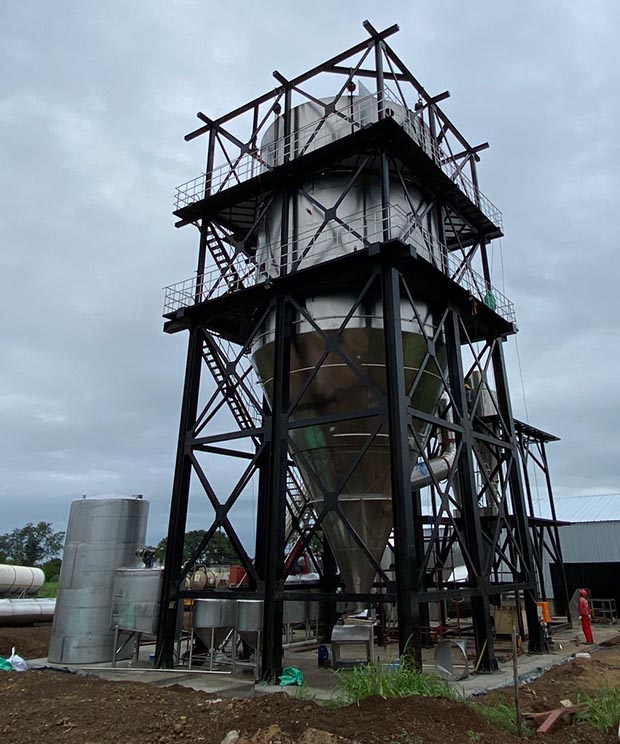

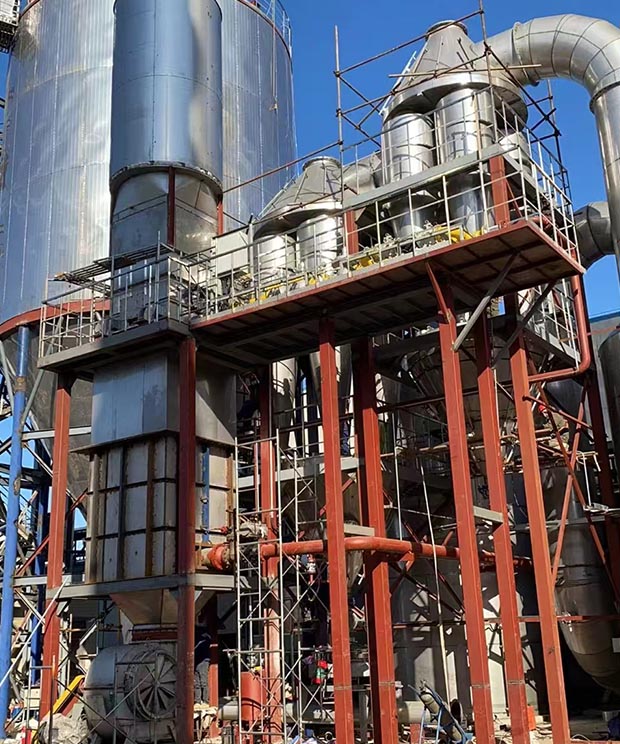

This unit is a device that can simultaneously complete drying and granulation processes. According to the process requirements, the pressure and flow rate of the feed liquid pump as well as the size of the nozzle orifice can be adjusted to produce the required spherical particles with a specific size ratio.
Working Principle
The working process of this unit is as follows: the feed liquid is delivered at high pressure by a diaphragm pump and atomized into fine droplets, which then flow downward in contact with the hot air. Most of the powder particles are collected through the discharge port at the bottom of the tower. The waste gas and its carried micro-powder are separated in a cyclone separator; the waste gas is discharged through the exhaust fan, while the micro-powder is collected by the powder collecting barrel installed at the lower end of the cyclone separator. A secondary dust removal device can also be installed at the fan outlet, resulting in a powder recovery rate of 96–98% or higher.
Technical Specifications
| Model | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Water evaporation rate | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Liquid processing capacity | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×1800 | 4600×22500 |
| Finished product output | 2~10 | ||||||
| Solid content of wet materials | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| Finished product water content | 140~350 | ||||||
| Electric power | <5 (up to 0.5) | ||||||
| Heat source | >97 | ||||||
| Product collection method and one-time collection efficiency | 75 | 120 | 150 | When the temperature is below 200: according to actual technology | |||
| Self-control instrument | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| Self-control instrument | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
| Inlet air temperature | ≥95 | ||||||
| Outlet air temperature | |||||||
Note: ★ The actual external dimensions can be determined according to the customer's actual situation, and the above dimensions are for reference only. The above evaporation rate is the maximum evaporation rate.
